PRODUCTS

Product Category

Model：

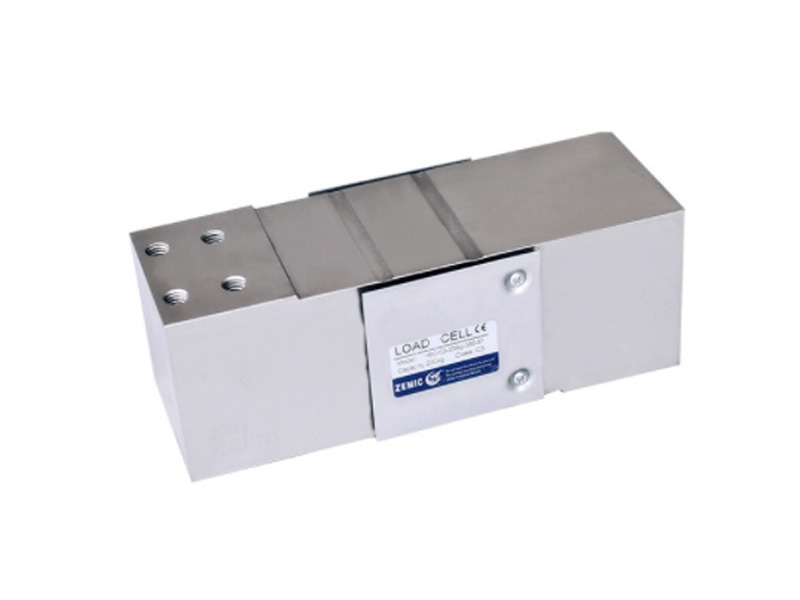

1.Stainless steel IP67 single point load cell
2.Bending beam
3.Suitable for belt, platform and other electronic weighing devices
4.Maximum platform size: for 50kg-200kg: 400 x 400 mm ; for 250kg-500kg: 600 x800 mm for 750kg-2t: 1200 x 1200 mm

Model：

Model：

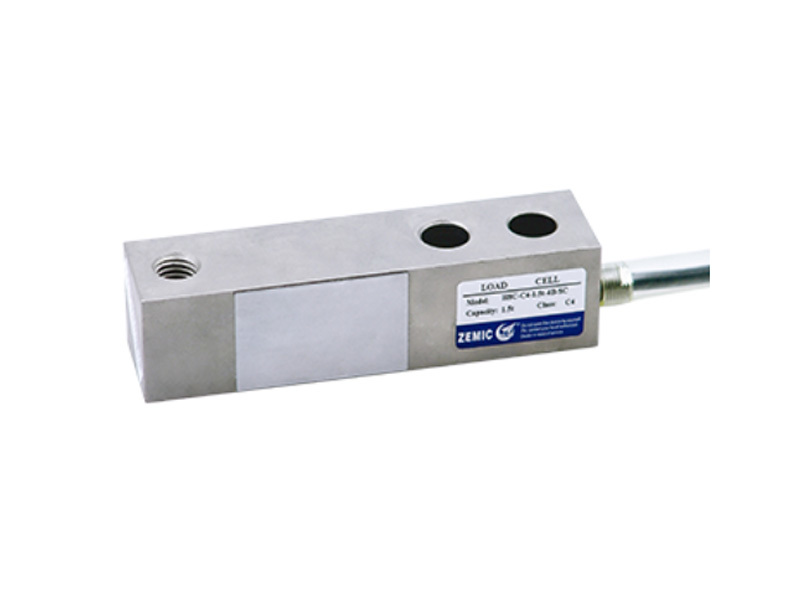

1.Stainless steel IP67 shear beam load cell (250kg is bending beam load cells)
2.Suitable for floor scales, automobile test facilities, hopper scales and otherweighing devices.
3.Current calibrated (sc-option)

Inquiry

Model：

AVIC H8C

1.Nickel plated alloy steel IP67 shear beam load cell (100kg, 250kg are bendingbeam load cells)
2.Adhesive sealed
3.Suitable platform weighing, bed weighing, etc
4.High accurac
5.High reliability
6.Current calibrated (sc-option)

Inquiry

Model：

AVIC L6E

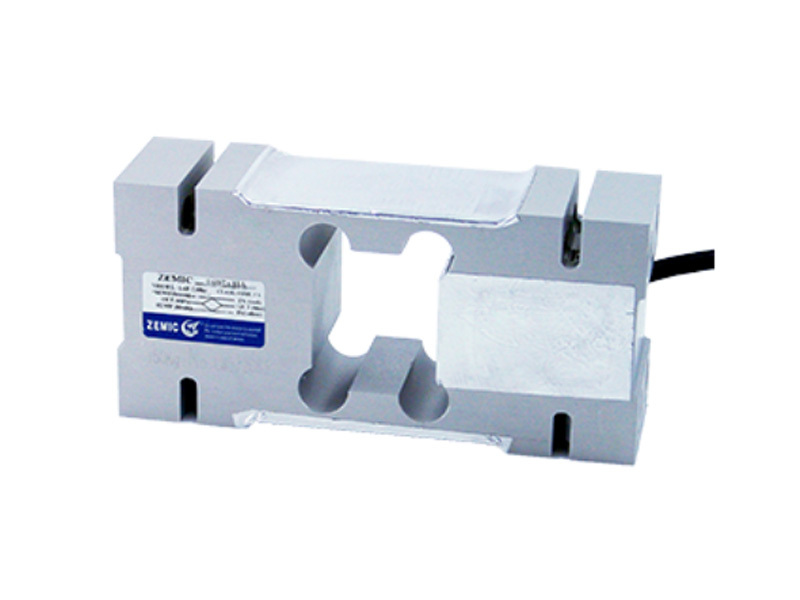

1.Aluminium-Alloy IP65 single point load cell;
2.Colourless anodized:
3.Suitable for pricing scales, bench scales, etc
4.Maximum platform size: 400 x 400mm.

Inquiry

Model：

AVIC L6E3

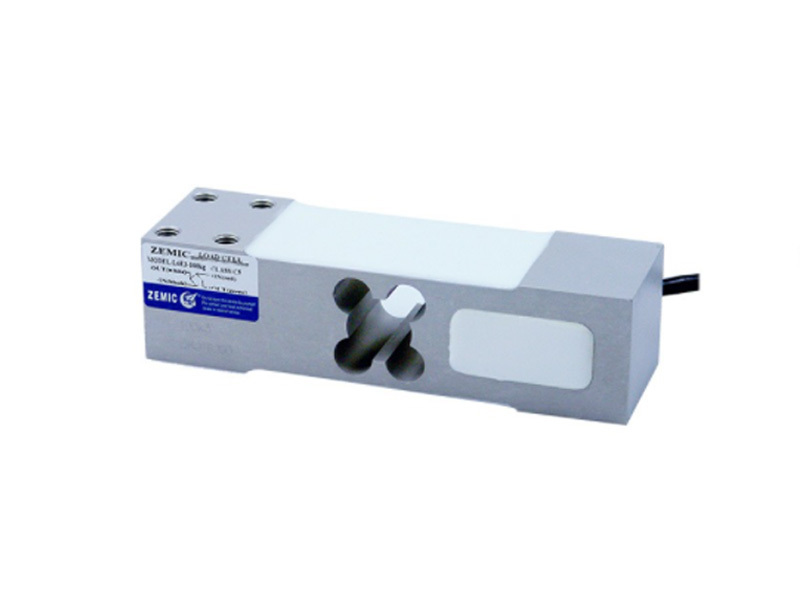

1.Aluminium-alloy IP65 single point load cell.
2.Colourless anodized
3.Suitable for pricing scales, bench scales, etc
4.Maximum platform size: 450 x 450 mm

Inquiry

Model：

AVIC L6F

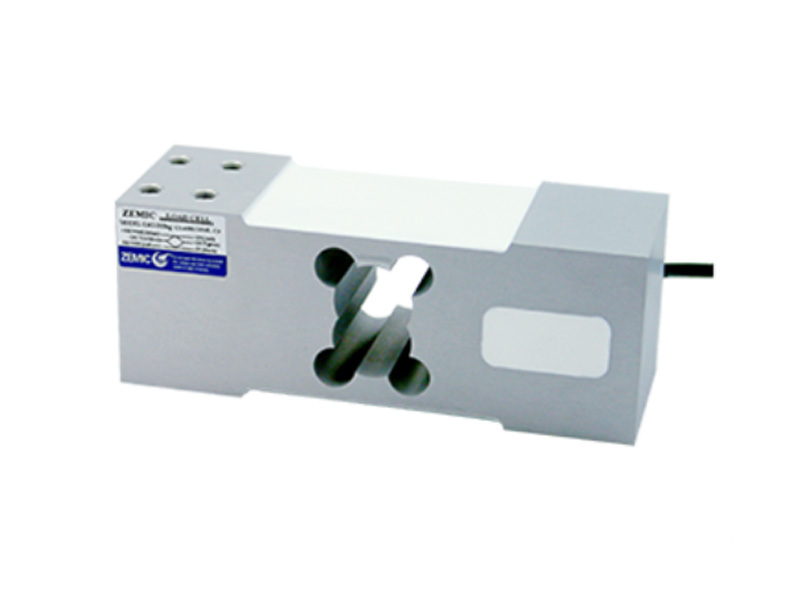

1.Aluminium-alloy IP65 single point load cell
2.Colourless anodized
3.Suitable for belt, pricing and platform scales
4.Maximum platform size: for 50kg-200kg: 600 x 600 mm for 250kg-500kg: 600 x800 mm for 750kg-2t: 1200 x 1200 mm

Inquiry

Model：

AVIC L6G

1.Aluminium-alloy IP65 single point load cell.
2.Colourless anodized
3.Suitable for single and double load cells structured platform scales.
4.Maximum platform size: 600 x 600 mm
5.A 1000 Ohm type available (R1) but is excluded from OIML

Inquiry

Model：

XK315A1G

CaiSun

1.Operating temperature: 0℃ to 40℃
2.Storage temperature: -25℃ to 55℃
3.Relative humidity:≤ 85% non–condensing
4.30 hours of full charge battery operation
5.Drive up 4X350Ω or 8X700Ω load cell
6.Manual/Automatic accumulation
7.Programmable zero tracking
8.Programmable digital filter
9.Selectable kg and lb
10.RS-232 serial interface
11.Accuracy can be increased ten times
12.Animal weighing
13.Hold function
14.Counting function
15.Printer

Inquiry

Model：

XK315A1GB-LF（Water Proof IP66）

CaiSun

1.Operating temperature: 0℃ to 40℃
2.Storage temperature: -25℃ to 55℃
3.Relative humidity:≤ 85% non–condensing
4.20 hours of full charge battery operation
5.Drive up 4X350Ω or 8X700Ω load cell
6.Manual/Automatic accumulation
7.Programmable zero tracking
8.Programmable digital filter
9.Selectable kg and lb 10.RS-232 serial interface
11.Optional RS485 serial interface
12.Accuracy can be increased ten times
13.Animal weighing
14.Hold function
15.Counting function
16.Printer
17.LO-OK-HI set point

Inquiry

Model：

XK315A1X

CaiSun

Inquiry

Model：

XK3190-A12+SS

YaoHua

1.High precision A/D conversion with readability 1/30000
2.Call and display inner code to replace weight observing and analysis tolerance
3.Special digital filtering technology to strengthen anti-vibration ability
4.Able to set up zero-tracking range, zero(auto/manual) range
5.Able to set up digital filter intensity、range and stable time
6.With counting function (unit weight data save protection in case of power off)
7.Selectable backlight mode
8.AC/DC power supply, with built-in rechargeable 6V/4AH battery
9.Alarm for low battery and auto power off at low battery
10.Optional of RS232 interface with selectable baud rate and communication method
11.Optional of scoreboard interface sending by 20mA current loop

Inquiry

< 1 2 3 4 5 6 >
